i think this is the correct setup.

 ... - .- -.




Y. O. L. O.
.

Post #92135 14th Nov 2011 4:54pm
View user's profile Send private message View poster's gallery Reply with quote
Dixy



Member Since: 09 Apr 2009
Location: Somerset
Posts: 1110

2016 Range Rover Vogue SDV8 Loire Blue

That will be 12N I guess. letters not necessarily in the right order

Post #92171 14th Nov 2011 6:40pm
View user's profile Send private message View poster's gallery Reply with quote
nicedayforit



Member Since: 11 Jun 2011
Location: Beside the Solway
Posts: 3979

England 2004 Range Rover Vogue Td6 Giverny Green

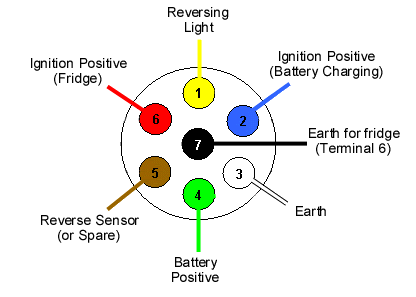

There is no reverse light function on the 12N socket you have to use the 12S socket, the grey one. Pin 1 plus earth on Pin 3. Smile

This is the socket layout from the rear of the car



Admin note: this post has had its images recovered from a money grabbing photo hosting site and reinstated Mr. Green

Post #92176 14th Nov 2011 7:05pm
View user's profile Send private message View poster's gallery Reply with quote
T24RES



Member Since: 22 Nov 2010
Location: Henley-on-Thames
Posts: 936

United Kingdom

Usually the numbers are printed under the flap on the socket

Post #92352 15th Nov 2011 2:16pm
View user's profile Send private message View poster's gallery Reply with quote
nicedayforit



Member Since: 11 Jun 2011
Location: Beside the Solway
Posts: 3979

England 2004 Range Rover Vogue Td6 Giverny Green

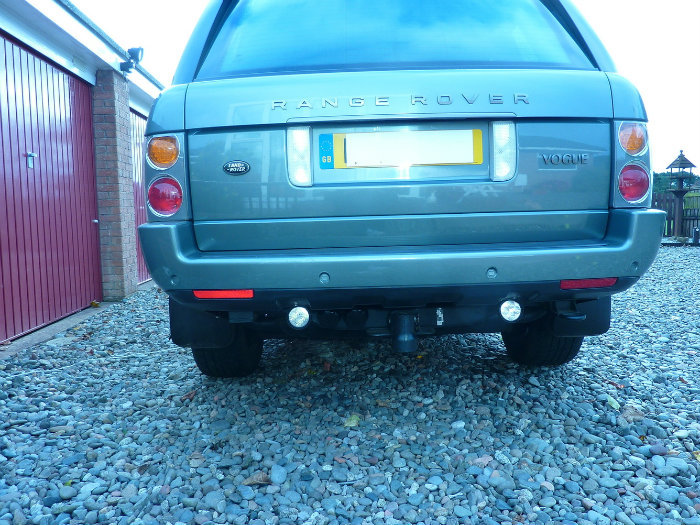

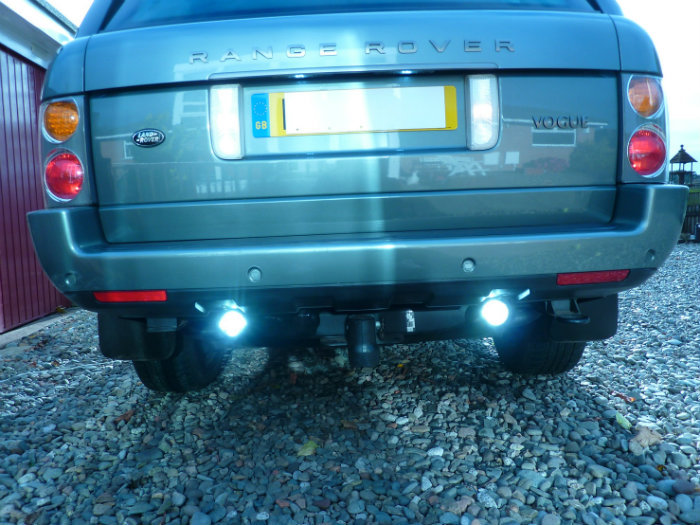

Living in an area without street lights I decided to do something about the woefully inadequate reverse lights on my car.

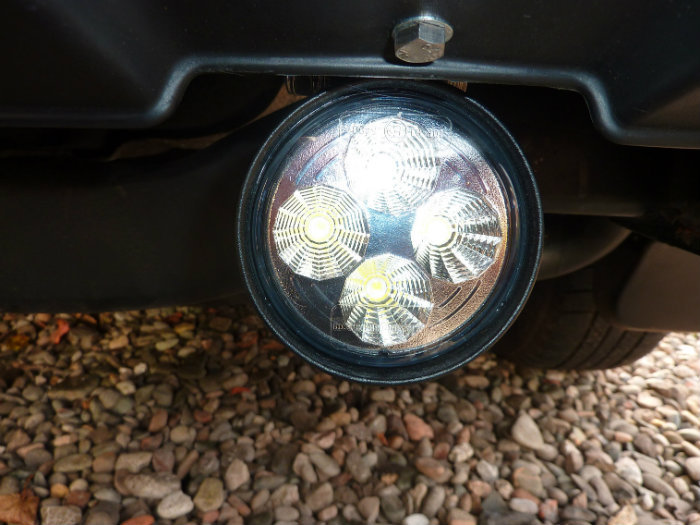

This is my solution, just in time for the darker nights. I appreciate it my not suit everyone but at least I can now see where I'm going when in reverse. The lights are led based and are very bright, four 3W leds in each aluminuim housing.
The lights could probably be wired directly into the reverse light circuit due to their low power but I chose instead to feed them thro two relays in order that they only light when reverse is selected in combination with the sidelights being on.
ie the original reverse lights on the car operate only in daylight and in the dark all 4 lights come on.

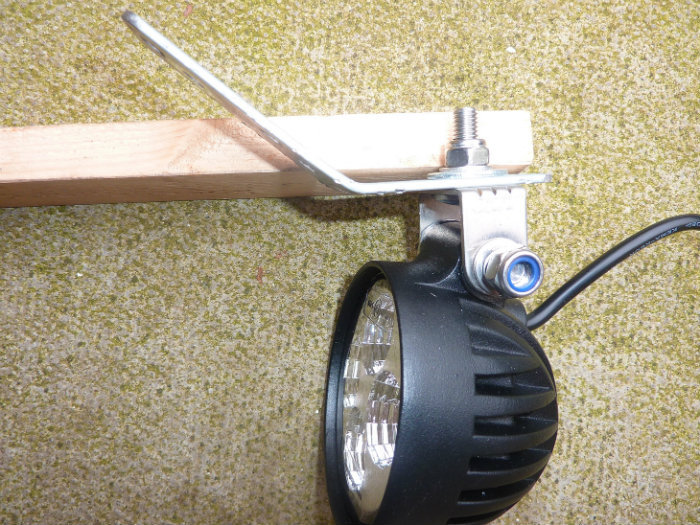

To make a tidier install I purpose made two galv steel strip brackets as shown to bolt the lights to, such that when they are bolted to the rear plastic skirt of the car all mounting brackets are hidden with only the body of the lamp housings showing.
The power for the lights is taken from unused Fuse 1 of the rear fuse board using a plug-in piggy back connector with the two individual relays switched by tapping into the reverse light and sidelight circuits respectively.

Click image to enlarge


Click image to enlarge


Click image to enlarge


Click image to enlarge


Admin note: this post has had its images recovered from a money grabbing photo hosting site and reinstated Mr. Green

Post #148292 26th Oct 2012 2:25pm
View user's profile Send private message View poster's gallery Reply with quote
stan
Site Moderator


Member Since: 13 Jul 2010
Location: a moderate moderated moderator moderating moderately in moderation
Posts: 35767

United Kingdom

good job that.. Thumbs Up

just wondering if a feed from the towbar electrics could also work... ... - .- -.




Y. O. L. O.
.

Post #148298 26th Oct 2012 2:41pm
View user's profile Send private message View poster's gallery Reply with quote
nicedayforit



Member Since: 11 Jun 2011
Location: Beside the Solway
Posts: 3979

England 2004 Range Rover Vogue Td6 Giverny Green

Yes you could wire a feed from the tow bar electrics, either plugging into the socket or tapping into the cables inside the boot.
The lights would then be on anytime you selected reverse, even in daylight.

Post #148300 26th Oct 2012 2:46pm
View user's profile Send private message View poster's gallery Reply with quote
stan
Site Moderator


Member Since: 13 Jul 2010
Location: a moderate moderated moderator moderating moderately in moderation
Posts: 35767

United Kingdom

nicedayforit wrote:

The lights would then be on anytime you selected reverse, even in daylight.


not such a bad thing i suppose ..it'll certainly warn others that you're reversing.. Very Happy ... - .- -.




Y. O. L. O.
.

Post #148301 26th Oct 2012 2:58pm
View user's profile Send private message View poster's gallery Reply with quote
dave699



Member Since: 03 Apr 2012
Location: Redcar
Posts: 457

England 2007 Range Rover Vogue SE TDV8 Stornoway Grey

Wonder if some of the thin linear DRL fittings you see on Fleabay would mount alongside the standard reverse lamps?
For example: http://www.ebay.co.uk/itm/2x-8-WHITE-LED-H...4d026c9662
Should make the wiring very simple too?
Had it, loved it!
2007 Vogue SE TDV8
Stornoway Grey / Ivory
Climatic Seats, RSE, AFS, Deployable steps, iPod kit.
